Products From FJ Dynamics

Hands Free – More Productive

Autosteering Kit

Control Terminal

The pioneer navigation system for autonomous driving in the world.

Booklet – FJ – Page 4

Sensor Modules

Sensor module ensures high precision and reliability.

Booklet – FJ – Page5

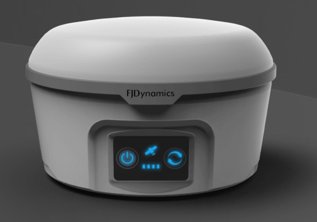

GNSS Antenna

GNSS Antennas with ultra-strong and stable signal, the accuracy is up to 2.5cm

Booklet – FJ – Page 5

Electric Steering Wheel

Pioneering auto driving assistance system in he world, support straight-line and curve modes, fit for any weather, anytime and anywhere.

Booklet- FJ-Page5

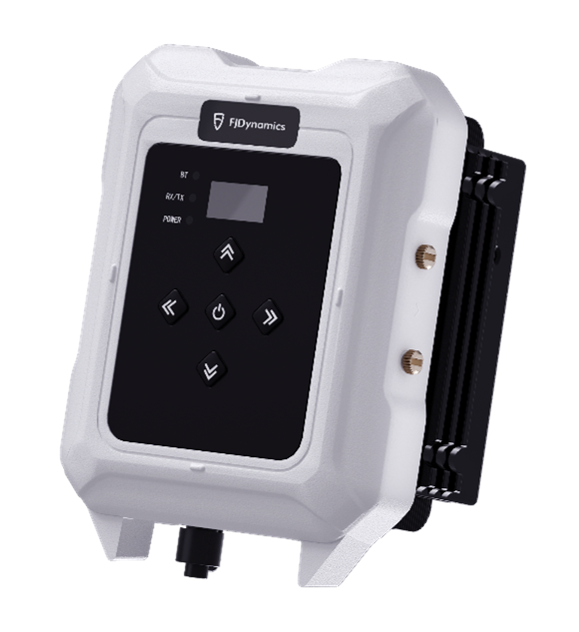

High Power Base Station

400 MHz/900 MHz Standard Version

The operation frequency is 410-470MHz（is able to fix frequency according to different needs)，and the signal transmitting covers a radius of 5km.

400MHz High Power Radio

External high power radio with higher signal transmitting distance and larger working range.

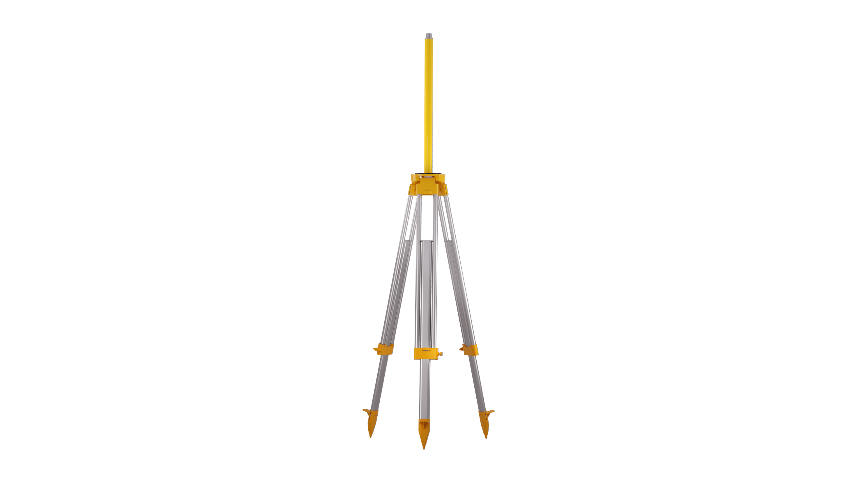

Stand Module

Assist to acquire uncovering environment and keep signals strong and precise.

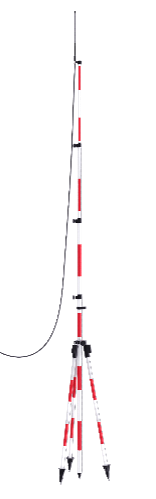

Antenna Stand Module (Optional)）

With external antenna stand, base station has the asistance of avoiding signal blocks.

400MHz High Power

Compared to the 400MHz standard, it requires an additional external radio module to become high power version. High power version has a larger range of signal coverage. The signal transmitting efficiency coverage was enhanced with a radius from 5km to 25km.

Product Parameter-400MHz
High Power Radio

Item	Unit	Spec.
Control Terminal	Size	300 × 190 × 43mm
	Screen	10.1-inch LCD screen with LED backlight
	/	1280 × 800 pixels
	Power Supply	10V ~ 30V
	Network Module	4G, compatible with 2G / 3G
	Waterproof and Dustproof	IP65
	Operating Temperature	-30°C ~ + 75°C
	Storage Temperature	-40°C ~ + 85°C
Angle Sensor	Waterproof and Dustproof	IP67
IMU	Operating Temperature	-40°C ~ + 85°C
IMU	Power Input	5V
Electric Steering Wheel	Power Input	12/24 VDC
	Operating Temperature	-20°C ~ + 70°C
	Storage Temperature	-55°C ~ + 85°C
	Frequency	GPS L1 / L2, GLONASS L1 / L2, BDS B1 / B2 / B3
GNSS Antenna	Operating Temperature	-40°C ~ + 85°C
GNSS Antenna	Storage Temperature	-55°C ~ + 85°C
